YJ5015-A 커넥터

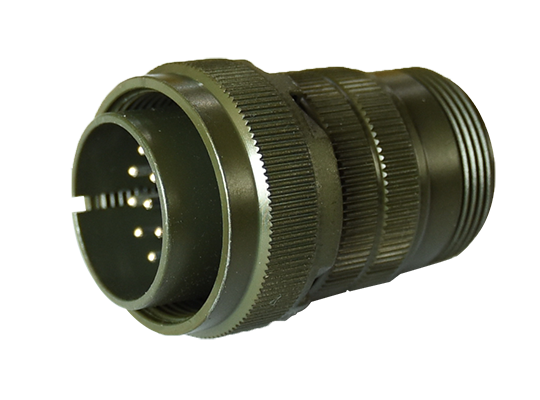

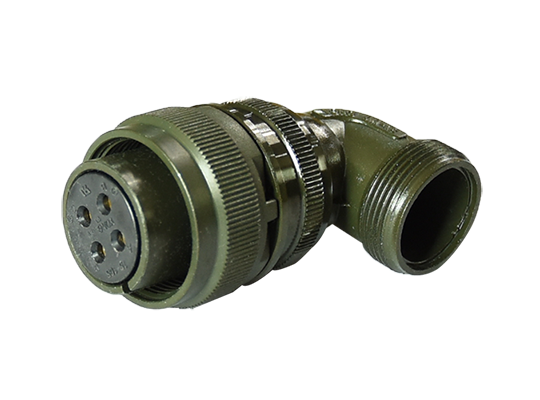

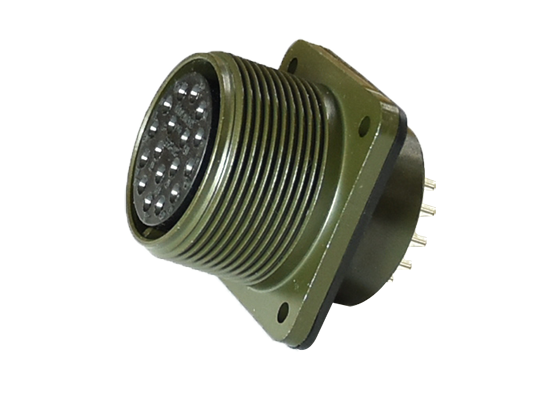

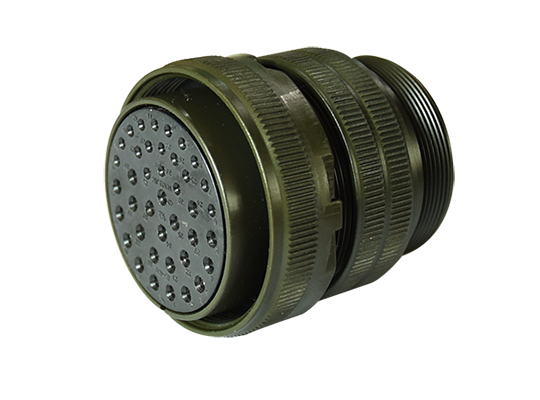

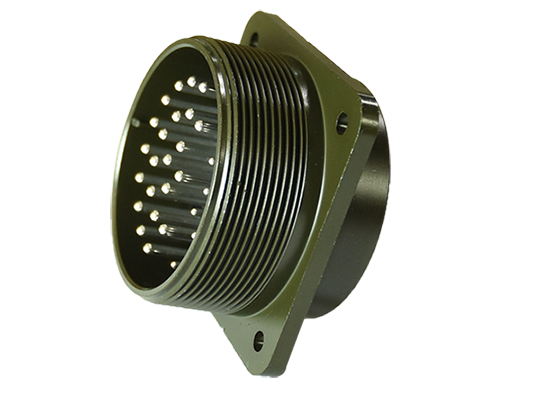

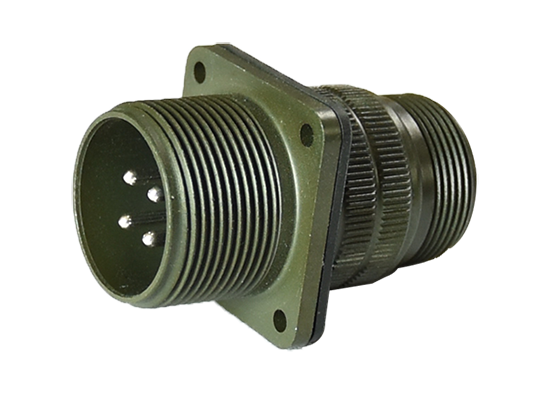

YJ5015-A 시리즈 커넥터

5015 A 시리즈 커넥터는 산업 자동화 장비, 컴퓨터 및 전기, 전자 장비, 상업용 통신장비, 용접설비, 검사장비, 철도 차량 및 자동차 분야에 이르기 까지 산업전반에 걸처 광범위하게 사용되는 가장 경제적이고 신뢰성 있는 신호접속 및 전원공급용 접속장치입니다. 5015 A 시리즈 커넥터는 나사결합방식을 채택하고 있으며, 전선과 접점의 연결방식은 납땜방식을 적용하고 있습니다. 본 커넥터의 접점배열 및 나사결합치수는 MIL-DTL-5015규격과 일치함에 따라 다른 5015계열의 커넥터와 상호결합 및 호환사용이 가능합니다. 용진일렉콤은 오랜기간 축적된 커넥터 제조경험을 통하여 다양한 5015 제품을 생산공급하고 있으며,고객이 요구하는 특별사양에도 신속히 대응을 하고 있습니다.

제품특징

장기간 신뢰성이 검증된 Threaded cuopling 방식을 채용하여 조립시공이 매우 신속 간편함
다양한 절연체 배열 및 도체 규격 (16AWG ~0AWG)제공
전선과 Solder 타입 접점연결방식 채택
단납기 - 발주서 입수 후 1~3주 이내 제품출고

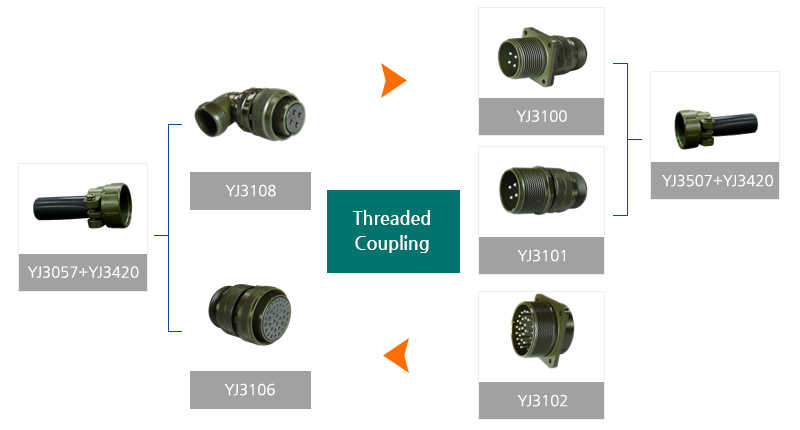

표준접속 가이드

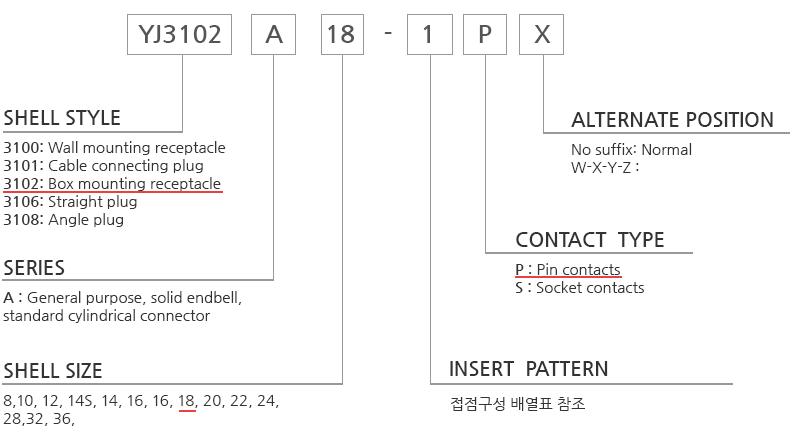

품명약호 및 주문 가이드

제품기술정보

Materials & Finish

	Materials	Finish
Shell	Aluminum alloy	Olive drab chromate coating over Zinc plating
Contact	Copper alloy	Silver plating
Insulation	Resilient Synthetic Rubber

Electrical Service Data

Dielectric withstanding voltage				Insulation resistance	Contact Service Rating
Service rating	Test Voltage	Operating Voltage			Contact Size	Test Current	Potential drop (max) mV
Service rating	AC(rms)	AC	DC		Contact Size	Test Current	Potential drop (max) mV
Inst.	1,000	200	250	5,000MΩ, min. (at DC500V)	#16	13A	49
A	2,000	500	700		#12	23A	42
D	2,800	900	1,250		#8	46A	26
E	3,500	1,250	1,750		#4	80A	23
B	4,500	1,750	2,400		#0	150A	21
C	7,000	3,000	4,200

Mechanical Features

Contact Size	Pin diam. (mmФ)	Solder pot (mmФ)	Wire Range Accommodations			Contact Engagement and Separation forces
Contact Size	Pin diam. (mmФ)	Solder pot (mmФ)	A.W.G	Wire nominal Square Size(mm²)	Dielectric Outer diam. (mmФ)	Min. separation force in lbs	Max.Average engagement force in lbs	Max. engagement force in lbs
#16	1.6	2	#20~#16	≤1.3	1.6~3.3	0.13	2.06	3.00
#12	2.4	3	#14~#12	≤3.5	2.9~4.3	0.18	3.50	5.00
#8	3.6	5.4	#10~#8	≤8.0	4.2~6.5	0.31	N/A	10.00
#4	5.7	8.5	#6~#4	≤22.0	6.9~9.4	0.63	N/A	15.00
#0	9.1	12	#2~#0	≤50.0	10.5~14.0	0.94	N/A	20.00

주) 본 기술정보는 해당제품의 대표값을 제시하고 있으며, 보다 자세한 내용은 당사 기술부서에 문의 바랍니다.

접점구성배열

Shell size 8

Insert Arrangement	8S-1
Front face of pin inserts
Service Rating	A
Number of Contacts	1
Contact Size	16

Shell size 10

Insert Arrangement	10S-2	10SL-3	10SL-4
Front face of pin inserts
Service Rating	A	INST,A	A
Number of Contacts	1	3	2
Contact Size	16	16	16

Shell size 12

Insert Arrangement	12S-1	12S-3	12S-4	12S-5
Front face of pin inserts
Service Rating	A	A	D	D
Number of Contacts	2	2	1	1
Contact Size	16	16	16	12

Shell size 14

Insert Arrangement	14S-1	14S-2	14S-3	14S-4	14S-5
Front face of pin inserts
Service Rating	A	INST	A	D	INST
Number of Contacts	3	4	1	1	5
Contact Size	16	16	8	16	16

Insert Arrangement	14S-6	14S-7	14S-9	14S-12
Front face of pin inserts
Service Rating	INST	A	A	A
Number of Contacts	6	3	2	3
Contact Size	16	16	16	16

Shell size 16

Insert Arrangement	16S-01	16S-1	16S-4	16S-5	16S-6	16S-8
Front face of pin inserts
Service Rating	A	A	D	A	A	A
Number of Contacts	8	7	2	3	3	5
Contact Size	18	16	16	16	16	16

Insert Arrangement	16-9		16-10	1S-11	16-12	16-13
Front face of pin inserts
Service Rating	A		A	A	A	A
Number of Contacts	2	2	3	2	1	2
Contact Size	16	12	12	12	4	12

Shell size 18

Insert Arrangement	18-1	18-3	18-4	18-5		18-8		18-9
Front face of pin inserts
Service Rating	B,C,F,G=A All others=INST	D	D	D		A		INST
Number of Contacts	10	2	4	1	2	7	1	5	2
Contact Size	16	12	16	16	12	16	12	16	12

Insert Arrangement	18-10	18-11	18-12	18-13		18-14		18-16
Front face of pin inserts
Service Rating	A	A	A	A		A		C
Number of Contacts	4	5	6	3	1	1	1	1
Contact Size	12	12	16	12	8	16	4	12

Insert Arrangement	18-18		18-19	18-20	18-21	18-22
Front face of pin inserts
Service Rating	INST		A	A	A	D
Number of Contacts	5	2	10	5	3	3
Contact Size	16	12	16	16	12	16

Shell size 20

Insert Arrangement	20-01	20-2	20-3	20-4	20-7
Front face of pin inserts
Service Rating	A	D	D	D	A,B,H,G=D C,D,E,F=A
Number of Contacts	10	1	3	4	8
Contact Size	16	0	12	12	16

Insert Arrangement	20-8		20-10	20-11	20-15	20-16
Front face of pin inserts
Service Rating	INST		A	INST	A	INST
Number of Contacts	4	2	4	13	7	7	2
Contact Size	16	8	16	16	12	16	12

Insert Arrangement	20-17		20-18		20-19	20-22		20-23
Front face of pin inserts
Service Rating	A		A		A	A		A
Number of Contacts	1	5	6	3	3	3	3	2
Contact Size	16	12	16	12	8	16	8	8

Insert Arrangement	20-24		20-27	20-29	20-33
Front face of pin inserts
Service Rating	A		A	A	A
Number of Contacts	2	2	14	17	11
Contact Size	16	8	16	16	16

Shell size 22

Insert Arrangement	22-2	22-4		22-5		22-7	22-8
Front face of pin inserts
Service Rating	D	A		D		E	E
Number of Contacts	3	2	2	4	2	1	2
Contact Size	8	12	8	16	12	0	12

Insert Arrangement	22-9	22-10	22-13		22-14	22-15
Front face of pin inserts
Service Rating	E	E	A		A	A,B,C,D,E F=A,D=E
Number of Contacts	3	4	1	4	19	1	5
Contact Size	12	16	16	12	16	16	12

Insert Arrangement	22-18	22-19	22-21		22-22	22-23
Front face of pin inserts
Service Rating	A,B,F,G,H=D C,D,E=A	A	A		A	A,B,C,D,E,F G=A,H=D
Number of Contacts	8	14	2	1	4	8
Contact Size	16	16	16	0	8	12

Shell size 24

Insert Arrangement	24-2	24-3		24-4		24-5
Front face of pin inserts
Service Rating	D	D		E		A
Number of Contacts	7	5	2	3	1	16
Contact Size	12	16	12	16	0	16

Insert Arrangement	24-7		24-9	24-10	24-11
Front face of pin inserts
Service Rating	A		A	A	A
Number of Contacts	14	2	2	7	6	3
Contact Size	16	12	4	8	12	8

Insert Arrangement	24-12		24-20		24-22	24-28
Front face of pin inserts
Service Rating	A		D		D	INST
Number of Contacts	3	2	9	2	4	24
Contact Size	12	4	16	12	8	16

Shell size 28

Insert Arrangement	28-2		28-3	28-6	28-10
Front face of pin inserts
Service Rating	D		E	D	G=D; all others=A
Number of Contacts	12	2	3	3	3	2	2
Contact Size	16	12	8	4	12	8	4

Insert Arrangement	28-11		28-12	28-15	28-16
Front face of pin inserts
Service Rating	A		A	A	A
Number of Contacts	18	4	26	35	20
Contact Size	16	12	16	16	16

Insert Arrangement	28-17	28-18	28-19		28-20
Front face of pin inserts
Service Rating	R=B; M,N,P=D all others=A	M=C; A B=A C,D,E,F=INST; all others=D	A,B=D; H,M=B all others=A		A
Number of Contacts	15	12	6	4	4	10
Contact Size	16	16	16	12	16	12

Insert Arrangement	28-21	28-22		28-51
Front face of pin inserts
Service Rating	A	D		A
Number of Contacts	37	3	3	12
Contact Size	16	16	4	12

Shell size 32

Insert Arrangement	32-1		32-5	32-6
Front face of pin inserts
Service Rating	A=E; all others=D		D	A
Number of Contacts	3	2	2	16	2	3	2
Contact Size	12	0	0	16	12	8	4

Insert Arrangement	32-7		32-8		32-9
Front face of pin inserts
Service Rating	A,B,h,j=INST; all others=A		A		D
Number of Contacts	28	7	24	6	12	2
Contact Size	16	12	16	12	16	4

Insert Arrangement	32-13		32-15		32-16
Front face of pin inserts
Service Rating	D		D		A
Number of Contacts	18	5	6	2	16	2	3	2
Contact Size	16	12	12	0	16	12	8	4

Insert Arrangement	32-17	32-20				32-22
Front face of pin inserts
Service Rating	D	A				A
Number of Contacts	4	16	2	3	2	54
Contact Size	4	16	12	8	4	16

Shell size 36

Insert Arrangement	36-1		36-3		36-4
Front face of pin inserts
Service Rating	D		D		A=D;B,C=A
Number of Contacts	18	4	3	3	3
Contact Size	16	12	12	0	0

Insert Arrangement	36-5	36-7		36-8
Front face of pin inserts
Service Rating	A	A		A
Number of Contacts	4	40	7	46	1
Contact Size	0	16	12	16	12

Insert Arrangement	36-9				36-10	36-20
Front face of pin inserts
Service Rating	A				A	A
Number of Contacts	14	14	2	1	48	30	2	2
Contact Size	16	12	8	4	16	16	12	8

Insert Arrangement	36-52
Front face of pin inserts
Service Rating	A
Number of Contacts	52
Contact Size	16

주) 본 란에 표시되지 않은 접점배열이 필요하신 경우 본사에 문의하여 주시기 바랍니다.
